MAKE CATS MOVE

Aperçu

Build your cat's prey and learn how movement and mechanics work together to create an engaging moving toy.

Compétences + Objectifs

Hunting

Improved hunting skills

Agility

Faster reaction time, speed and flexibility

Mood

Incredible happiness that will be expressed as cold indifference

Âge 13+ (human), 2 Months+ (cat)

Temps 30 min

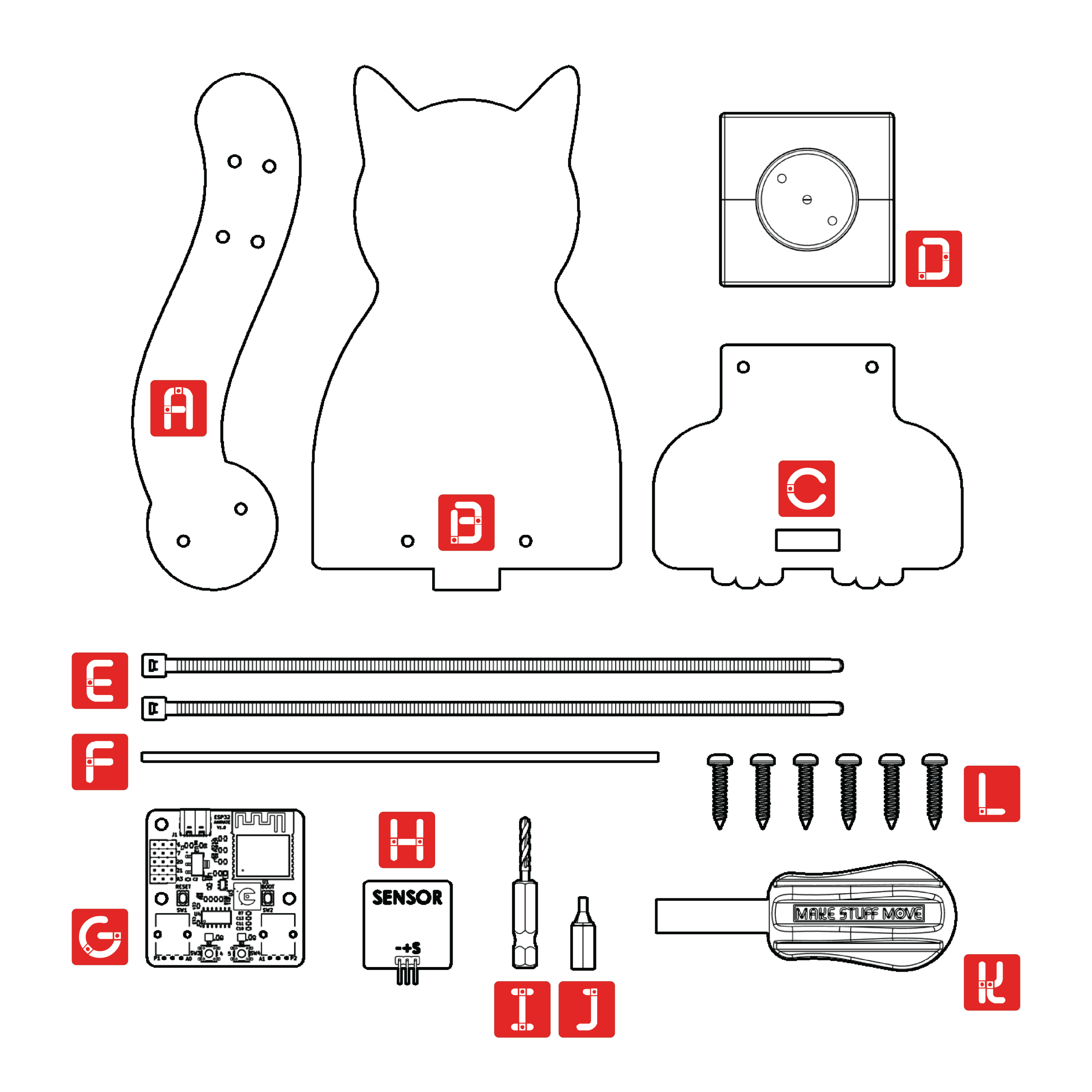

Matériaux

  • UNTail
  • BCat Front
  • CBase
  • DChaussette servo
  • ECable Ties
  • FDowel
  • gESP32-Animate Board
  • HPIR Motion Sensor
  • jeP0 Drill Bit
  • JS1 Bit
  • KTournevis
  • L#6 x 3/4" Wood Screws

Étapes de construction

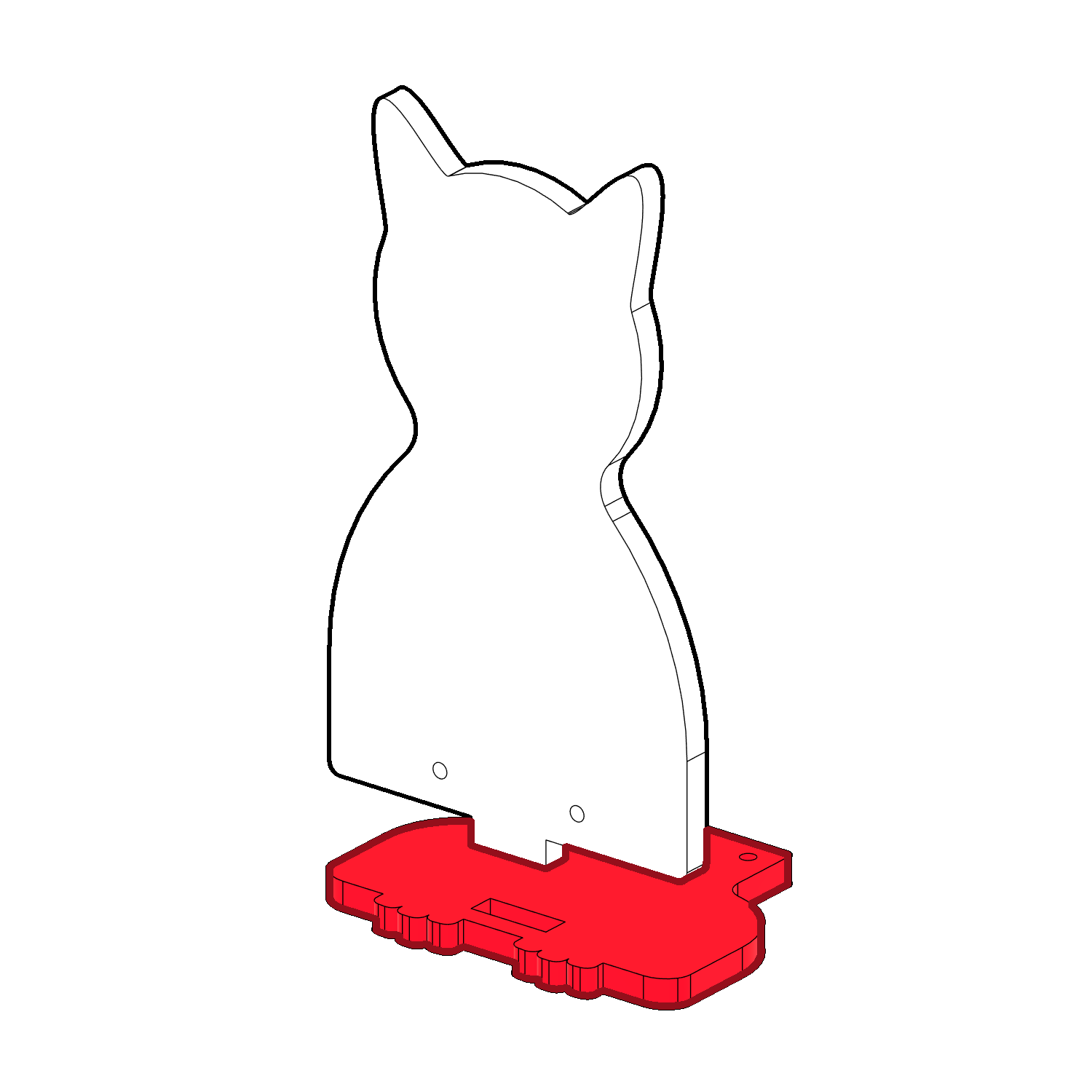

Étape 1

Fit the body into the base plate

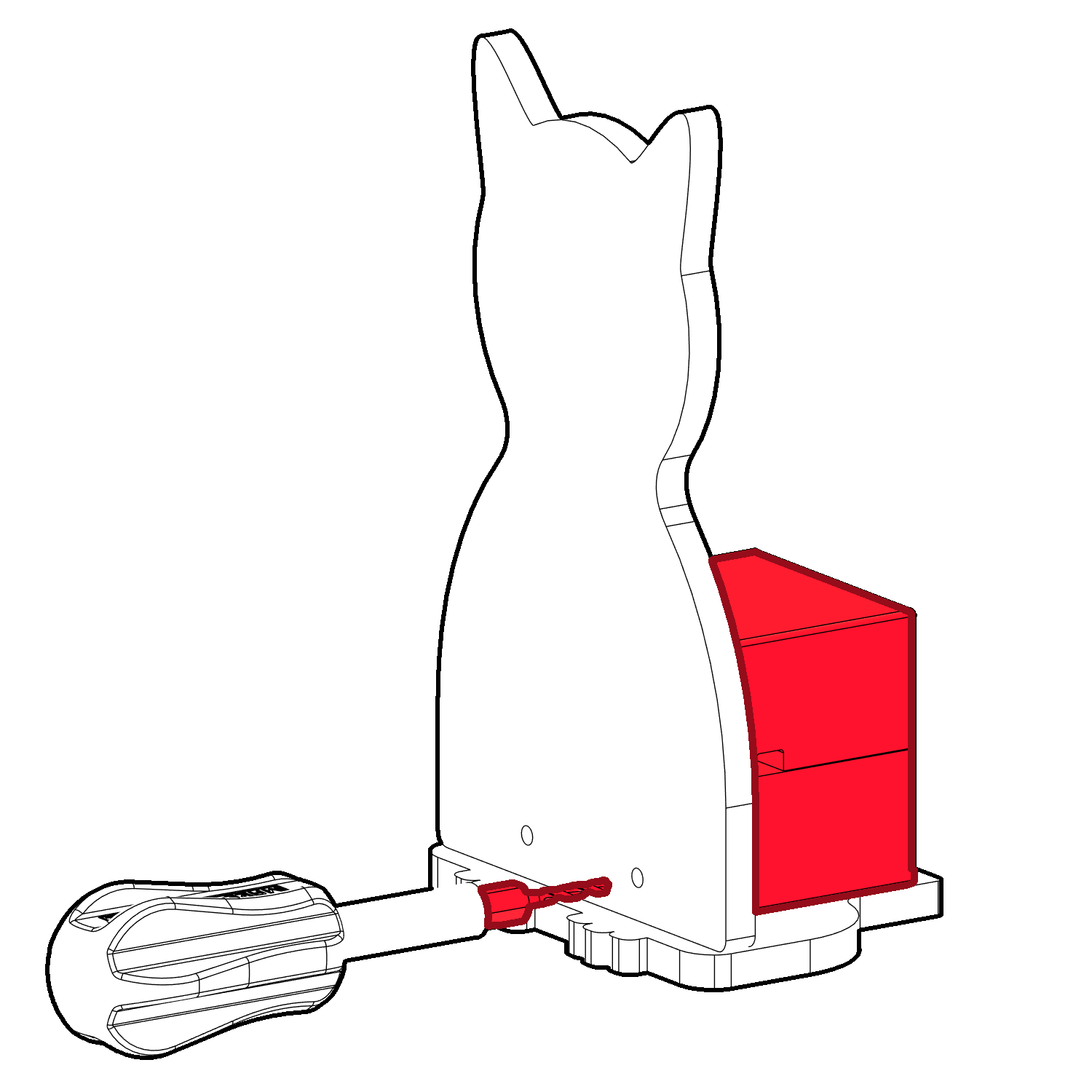

Étape 2

Align the Servo Sock with the non-rotating disc side toward the body.

Use the drill bit to drill two pilot holes.

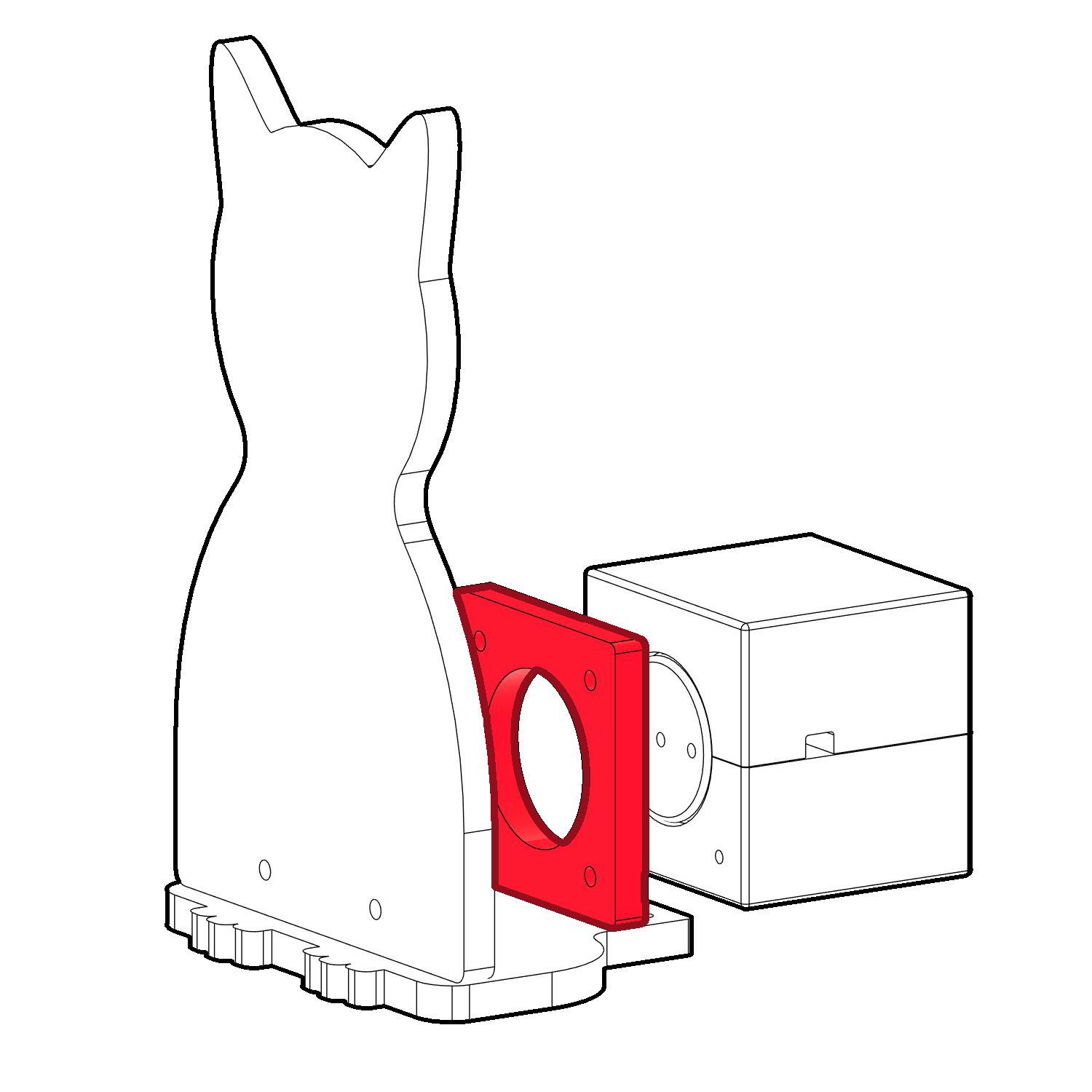

Étape 3

Place the spacer between the body and the Servo Sock

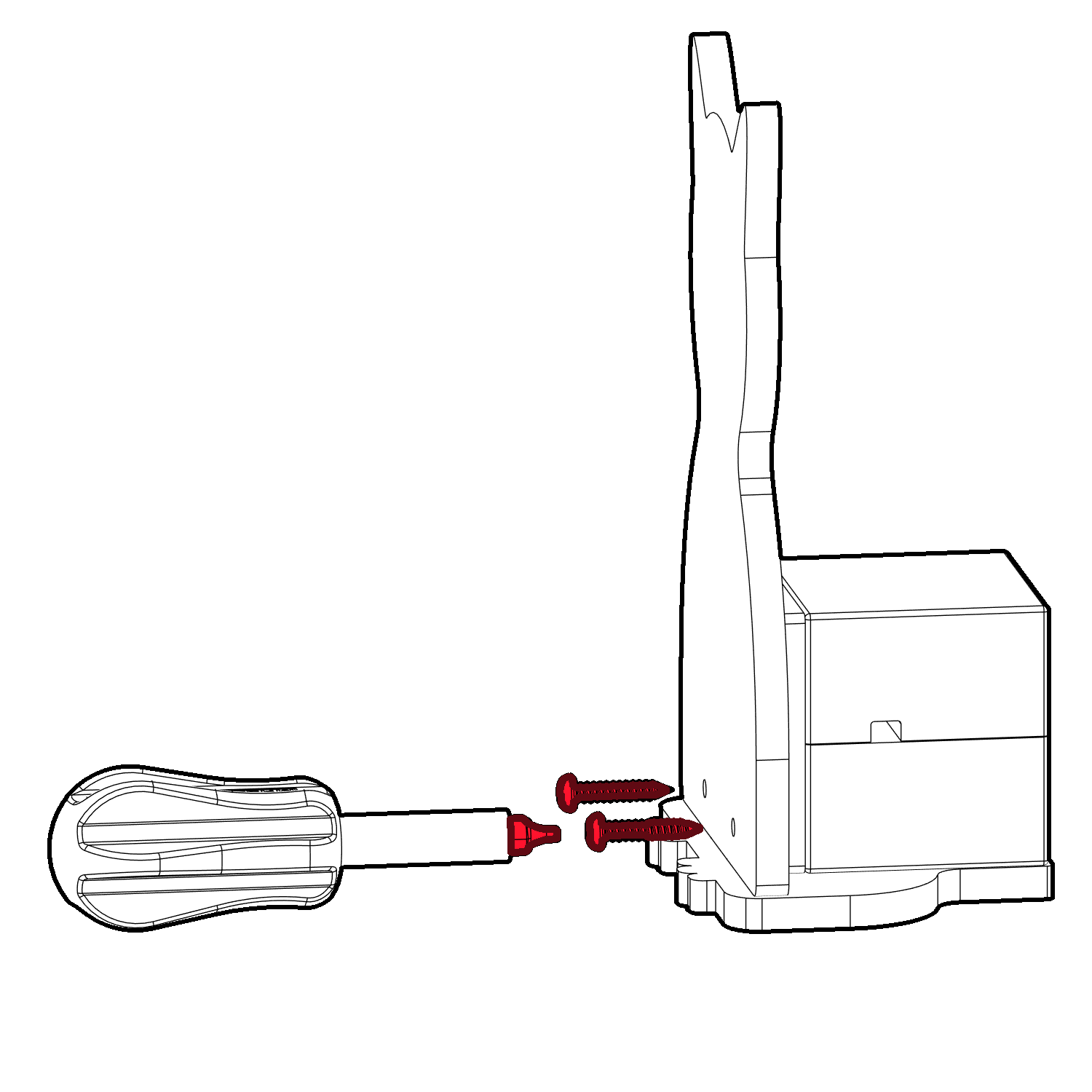

Étape 4

Use 2 x #6x3/4" screws to mount the Servo Sock to the body.

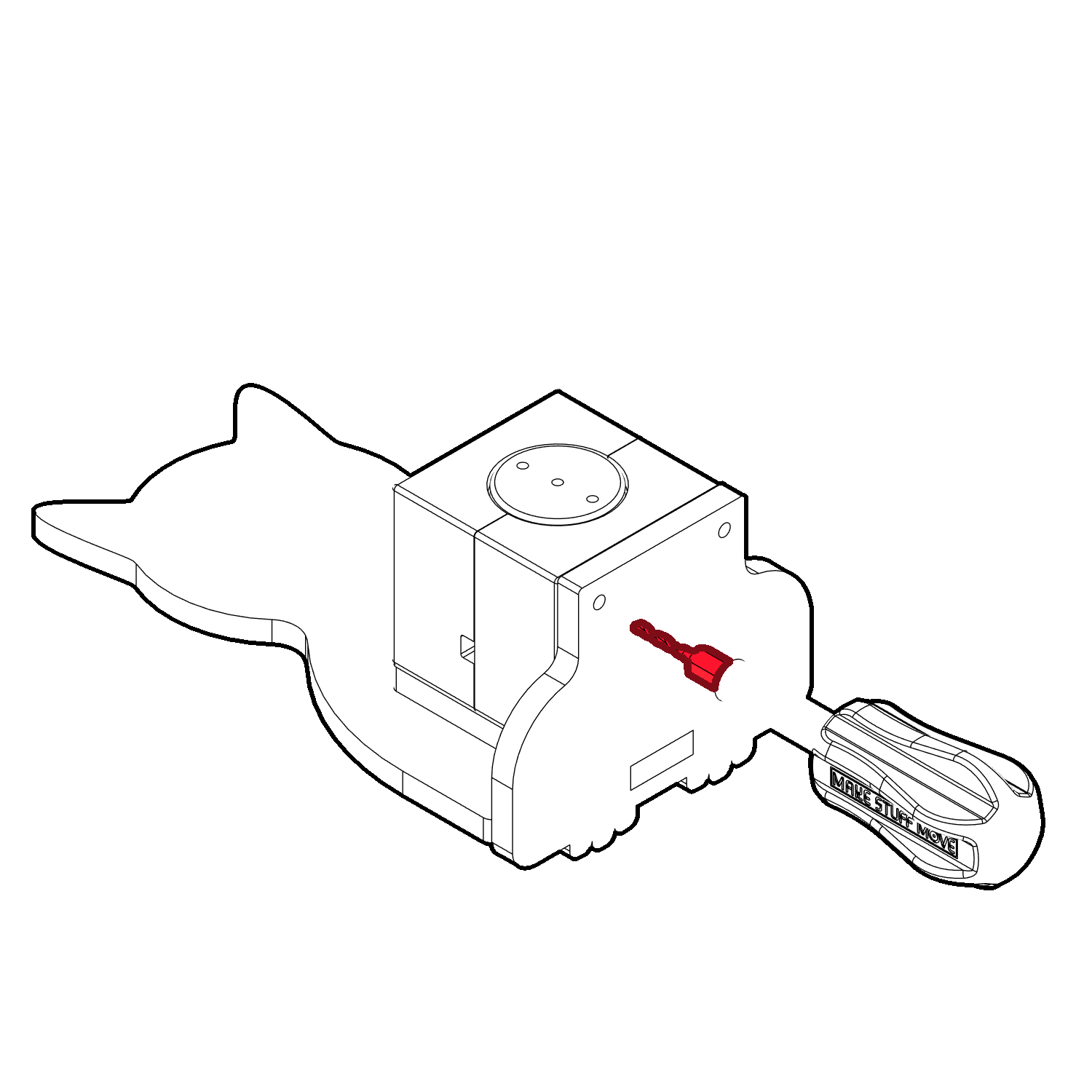

Étape 5

Drill 2 more pilot holes in the bottom.

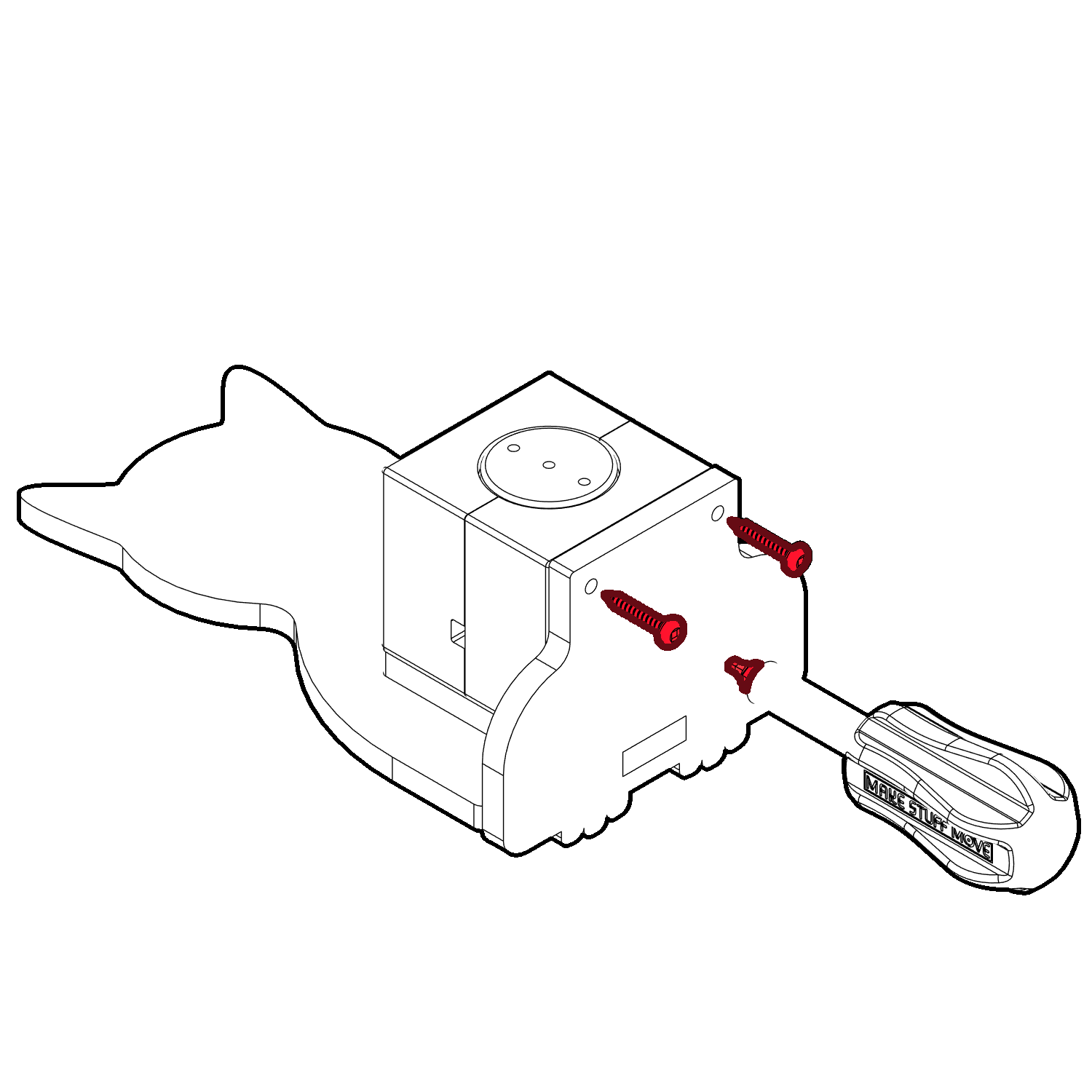

Étape 6

Use 2 x #6x3/4" screws to secure the bottom

Étape 7

Mount the tail to the Servo Sock's moving disc with 2 x 3mm wood spacers between them.

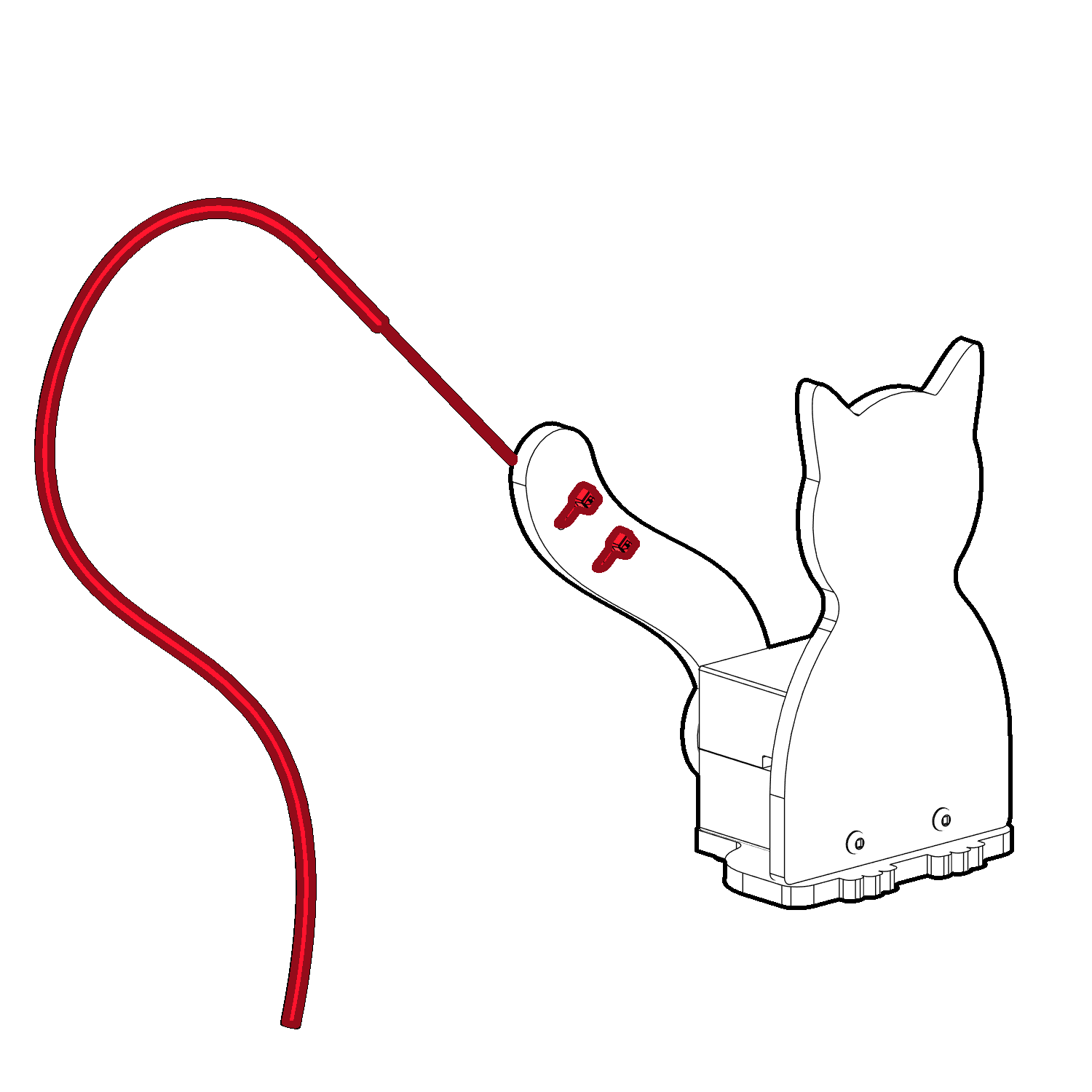

Étape 8

At this stage it is up to you to attach whatever your cat will go crazy for. To get you started, the kit includes a piece of silicone tubing a a wood dowel that can be used as shown.

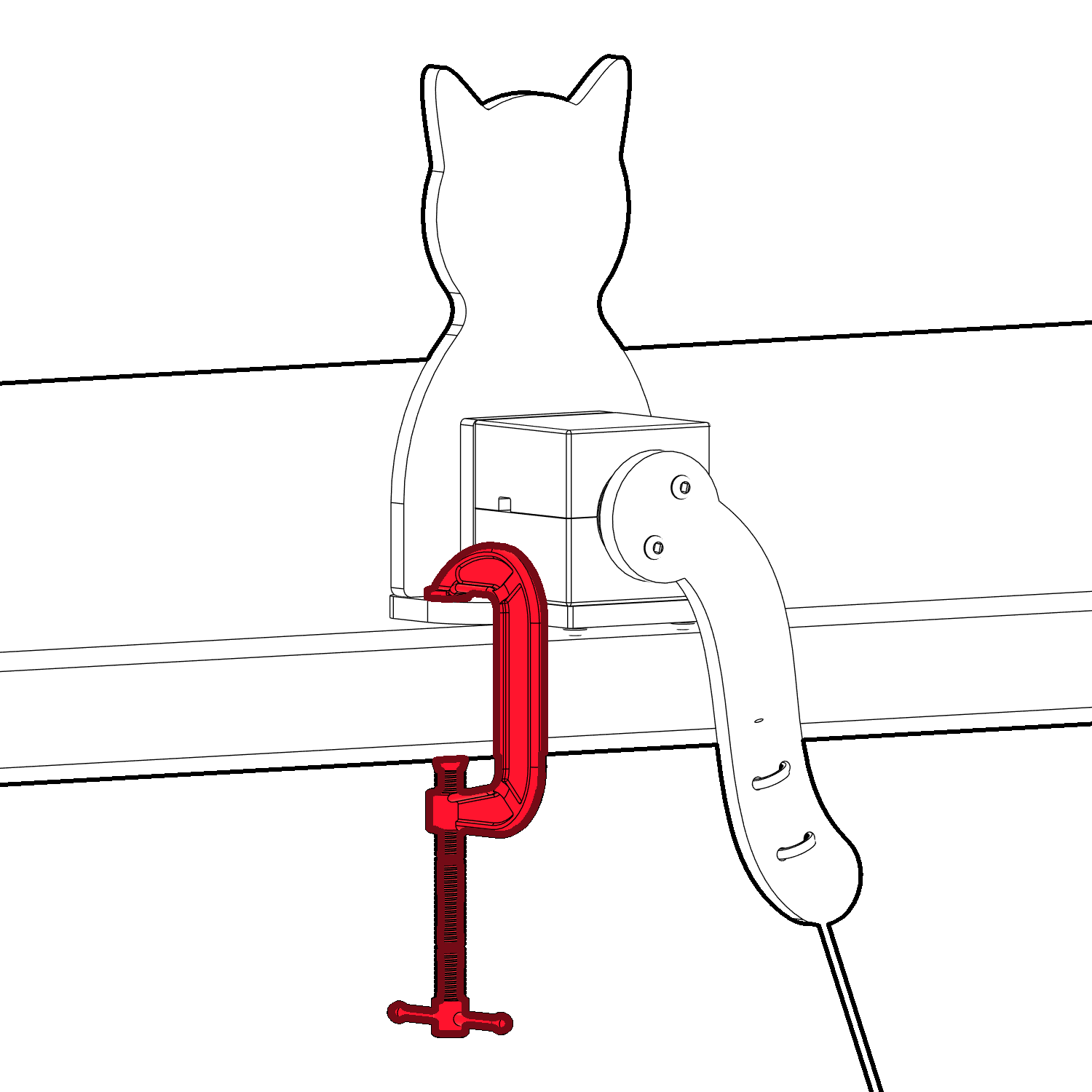

Étape 9

If you want to clamp to a table surface the included c-clamp will do the trick. You can also adjust the servo's position. For more information check out this Servo Sock tutorial

*Note- Be sure to not clamp too hard, especially on stone surfaces.

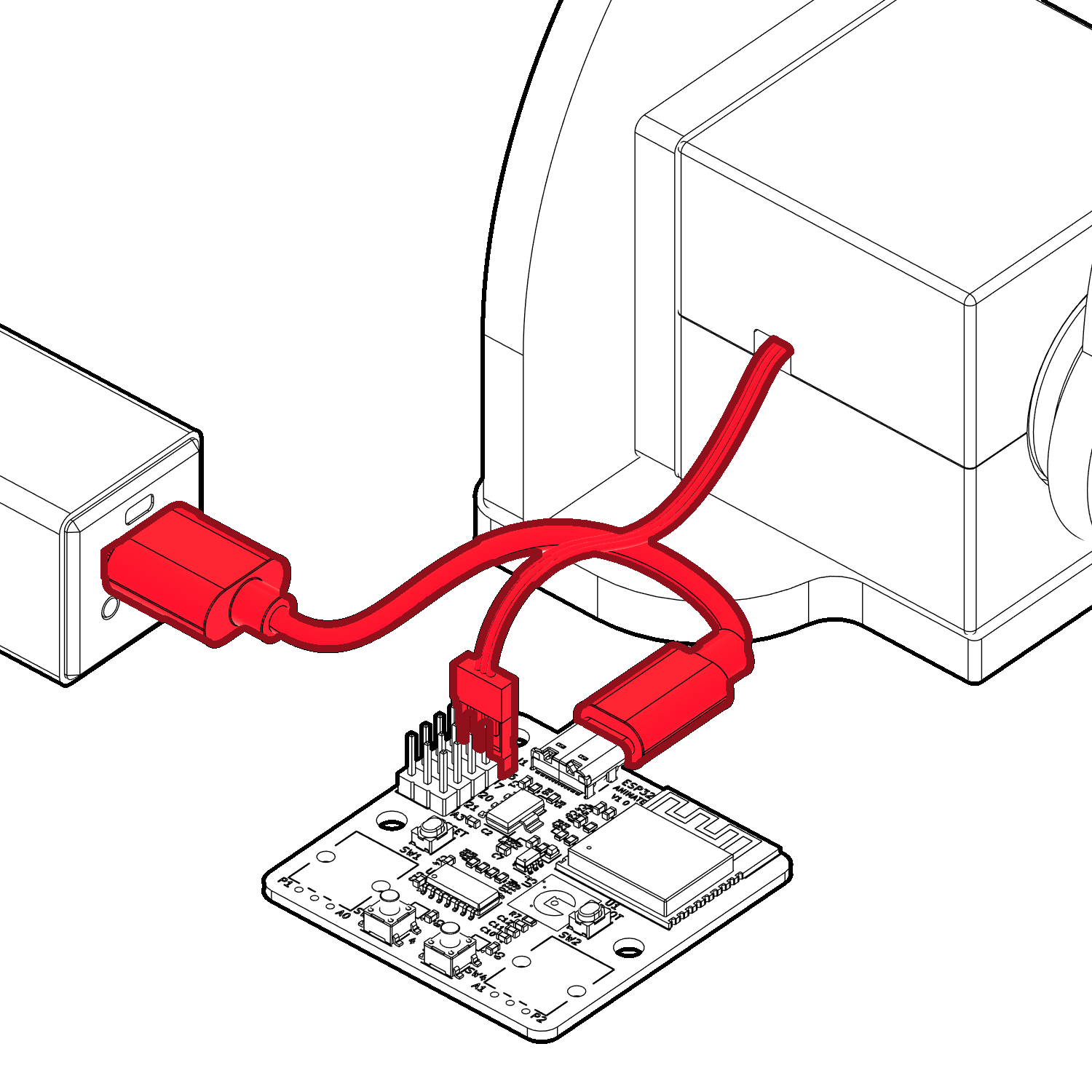

Étape 10

To control your cat, check out ESP32-Animate quickstart
